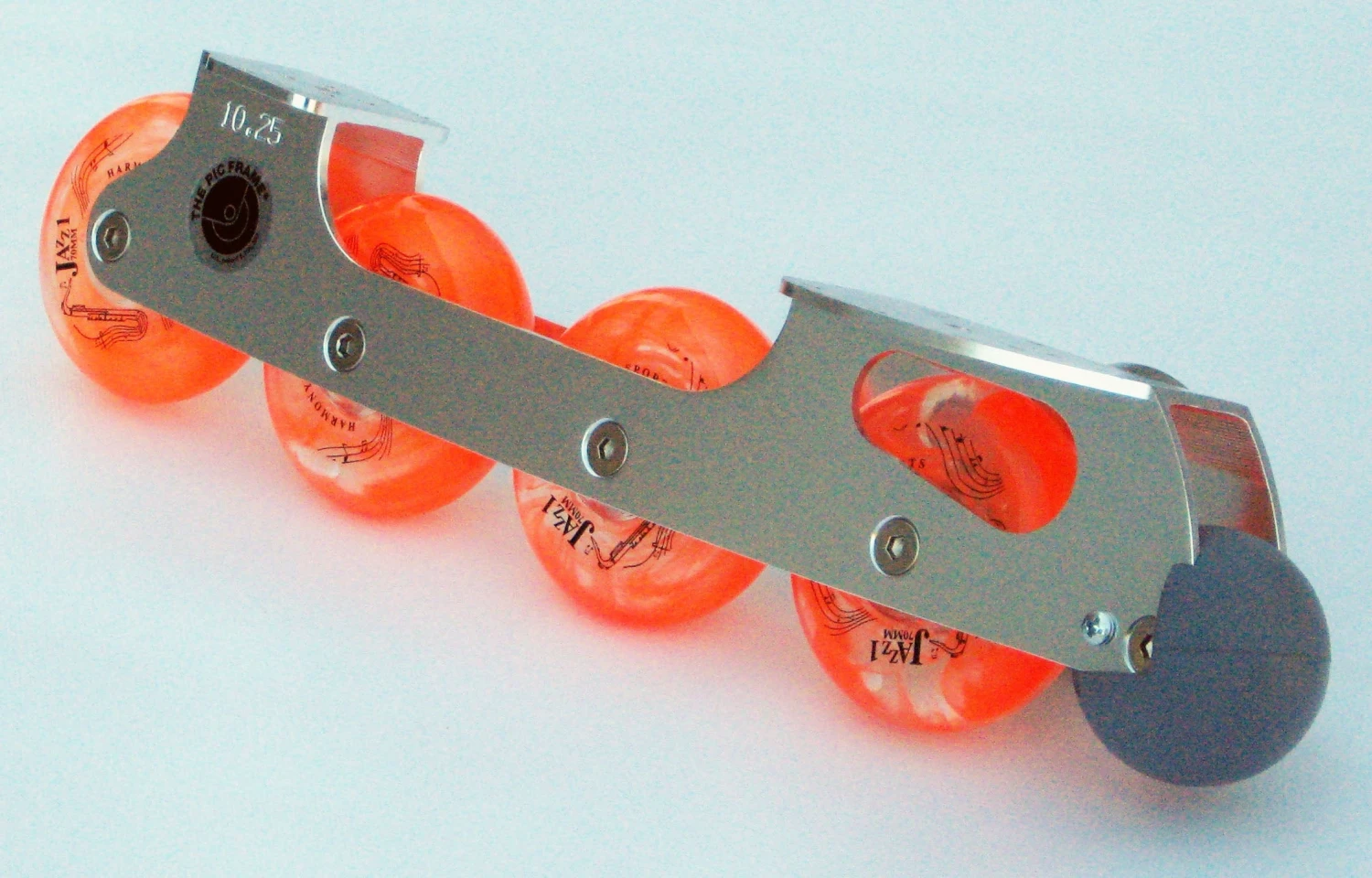

Pic Skate J99 4-Wheel Frame Set

The frames are the tried and true. Smooth transition from front to rear. The wheels are high tech PU with at least 80% elasticity. They provide superior grip, edges, rebound and shock absorption. The ABEC 11 ceramic bearings have a service life two to three times the common steel. They are light weight absorb less heat and have a higher working speed. The P-14 X-Ball pic is designed for enhanced wear and less resistance in spins with proper toe in angle. This set up is great in or out doors.

The J99 4 wheel frame set is suitable for skate sizes 6.5 and over. The 4 wheel frame provides enhanced stability. The frame has a double rocker suitable for the longer boot. Used in freestyle and dance. (Set includes 2 frames, Jazz 1 wheels, P-14 pics, ABEC 11 ceramic bearings, mounting kit and instructions.)

Jazz Wheels provide superior grip, edges, and rebound with high shock absorption. They are resilient and suitable for in or out doors.

ABEC 11 ceramic bearings are lighter, quieter, and provide 2 to 3 times the wear of steel bearings.

The X-Ball pic is bigger, stronger. Better spins.

Sizes (inches) 9.25, 9.75, 10.25, 10.75, 11.37, 12.12

Measure the distance from heel to toe using a cloth tape. Subtract 1/4″ and order that or next smaller size.
Example 1: Boot measures 10-1/4″ toe to heel (10-1/4″ – 1/4″ = 10″) Order 9.75″
Example 2: Boot measures 9-1/8″ toe to heel (9-1/8″ – 1/4″ = 87/8″) Order 8.75″

Pic Frame Installation:
Center the frame from toe to heel. Attach screws to slotted holes first for easy adjustment, then attach remaining screws when properly positioned.

The recommended distance of the pick is 1-1/8″ forward of the toe.

The sole of the boot will draw down when attached. The gap between plate and toe is normal. To rotate a worn pick, remove set screws and rotate pick to an unworn surface and reattach set screws.

Parts Check List: for 4 wheels:
Pic frames – 2
T-bushings – 16
Axle bolts – 8
Coupling screws 8
Allen keys – 2
Wheels – 8
Bearings pre-mounted – 16
Spacers pre-mounted – 8
Heel plate screws 3/4 – 8
Toe plate screws 1/2 – 12

Inventory rotates. If you need something quickly, message me for stock.
